Class that communicates with a Client via a SOCKET and delivers its receive result of type ServerMessage to its "owner", which must be a Server. You can use the method ServerReceiver::acceptMessage(AbstractMessage * pTcpMessage) to change the delivery to the "owner" in subclasses by overwriting the method. More...

#include <TcpServerReceiver.h>

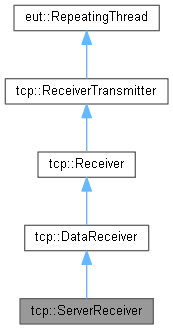

Inheritance diagram for tcp::ServerReceiver:

[legend]

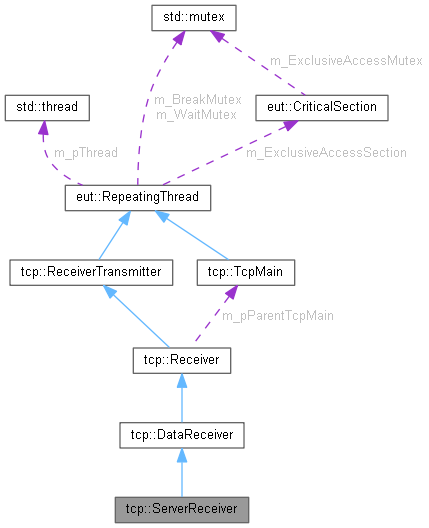

Collaboration diagram for tcp::ServerReceiver:

[legend]

Public Member Functions
	ServerReceiver (Server *pParent, SOCKET Socket, unsigned int uiDataSize)

virtual	~ServerReceiver ()

virtual void	cancel () override

void	setValid (bool bValid)

Public Member Functions inherited from tcp::DataReceiver
	DataReceiver (TcpMain *pParent, SOCKET Socket, unsigned int uiDataSize)

virtual	~DataReceiver ()

void	setDataSize (unsigned int uiDataSize)

unsigned int	getDataSize () const

Public Member Functions inherited from tcp::Receiver
	Receiver (TcpMain *pParent, SOCKET Socket)

virtual	~Receiver ()

Public Member Functions inherited from tcp::ReceiverTransmitter
	ReceiverTransmitter (SOCKET Socket)

virtual	~ReceiverTransmitter ()

virtual void	takeABreak () override

virtual void	finishBreak () override

int	getPeerName (std::string &rstrIPAdress, unsigned int &ruiPort) const

SOCKET	Socket () const

Public Member Functions inherited from eut::RepeatingThread
	RepeatingThread ()

virtual	~RepeatingThread ()

virtual int	start ()

bool	testCancel ()

RepeatingThread::STATUS	status () const

bool	isInExclusiveAccess () const

void	setExclusiveAccess ()

void	unsetExclusiveAccess ()

int	getBreakCounter ()

void	waitForInput ()

void	signalInput ()

Protected Member Functions
	ServerReceiver ()

	ServerReceiver (SOCKET)

	ServerReceiver (TcpMain *, SOCKET)

	ServerReceiver (TcpMain *, SOCKET, unsigned int)

virtual void	work () override

virtual int	acceptMessage (AbstractMessage *pTcpServerMessage) override

virtual void	generateNewTcpMessage (AbstractMessage &prTcpServerMessage, char pszTransmitData, unsigned int uiTransmitDataSize) const override

virtual void	generateNewTcpMessage (AbstractMessage &prTcpServerMessage, char pszRawMsg, unsigned int uiRawMsgSize, unsigned int uiMessageID, int iActionCode, const std::string &rstrInfo) const override

Protected Member Functions inherited from tcp::DataReceiver
	DataReceiver ()

	DataReceiver (SOCKET)

	DataReceiver (TcpMain *, SOCKET)

void	initStreamData ()

int	processReceivedData (char *pszSentBuffer, unsigned int t_uiSentBufferSize)

Protected Member Functions inherited from tcp::Receiver
	Receiver ()

	Receiver (SOCKET Socket)

Protected Member Functions inherited from tcp::ReceiverTransmitter
	ReceiverTransmitter ()

Protected Member Functions inherited from eut::RepeatingThread
void	threadWork ()

void	setStatus (STATUS eStatus)

STATUS	getStatus ()

void	toOrder (ORDER eOrder)

ORDER	getOrder ()

Protected Attributes
bool	m_bValid

Protected Attributes inherited from tcp::DataReceiver
unsigned int	m_uiDataSize

unsigned int	m_uiStreamSize

unsigned int	m_uiStreamPosistion

char *	m_szStreamBuffer

char *	m_pszSentBuffer

Protected Attributes inherited from tcp::Receiver
TcpMain *	m_pParentTcpMain

Protected Attributes inherited from tcp::ReceiverTransmitter
SOCKET	m_Socket

Private Member Functions
	ServerReceiver (const ServerReceiver &)

ServerReceiver &	operator= (const ServerReceiver &)

Additional Inherited Members
Public Types inherited from eut::RepeatingThread
enum	EuTHREADERROR { EuTHREAD_ERR_NO_THREAD = -10301 , EuTHREAD_ERR_THREAD_ALREADY_WORKING = -10302 , EuTHREAD_ERR_THREAD_BREAK_COUNT_LESS_THAN_ZERO = -10303 , EuTHREAD_ERR_UNKNOWN = -10400 }
	Error range = -10301 to -10400 More...

enum	STATUS { eAT_THE_START , eWORKING , ePAUSING , eENDING , eCOMPLETED }

enum	ORDER { eUNDEFINED , eDO_WORK , eEXIT }

Detailed Description

Class that communicates with a Client via a SOCKET and delivers its receive result of type ServerMessage to its "owner", which must be a Server. You can use the method ServerReceiver::acceptMessage(AbstractMessage * pTcpMessage) to change the delivery to the "owner" in subclasses by overwriting the method.

Copyright: © 2010 Helmut Jakoby

Author: Helmut Jakoby

Constructor & Destructor Documentation

◆ ServerReceiver() [1/6]

tcp::ServerReceiver::ServerReceiver ( )

protected

This constructor is not available.

◆ ServerReceiver() [2/6]

tcp::ServerReceiver::ServerReceiver ( SOCKET )

protected

This constructor is not available.

◆ ServerReceiver() [3/6]

tcp::ServerReceiver::ServerReceiver	(	TcpMain *	,
		SOCKET	)

protected

This constructor is not available.

◆ ServerReceiver() [4/6]

tcp::ServerReceiver::ServerReceiver	(	TcpMain *	,
		SOCKET	,
		unsigned int	)

protected

This constructor is not available.

◆ ServerReceiver() [5/6]

tcp::ServerReceiver::ServerReceiver	(	Server *	pParent,
		SOCKET	Socket,
		unsigned int	uiDataSize )

Constructor with parameter passing.

Parameters

[in]	pParent	The owning parent object.
[in]	Socket	The socket through which communication takes place.
[in]	uiDataSize	The package size.

Exceptions

eut::ErrorNException An exception is thrown if an error occurs.

◆ ~ServerReceiver()

virtual tcp::ServerReceiver::~ServerReceiver ( )

virtual

Destructor.

◆ ServerReceiver() [6/6]

tcp::ServerReceiver::ServerReceiver ( const ServerReceiver & )

private

The copy constructor is not available.

Member Function Documentation

◆ acceptMessage()

virtual int tcp::ServerReceiver::acceptMessage ( AbstractMessage * pTcpServerMessage )

overrideprotectedvirtual

Forwards the transferred message to its Server, which also deletes the message after processing.
The Server can then process these further in subclasses if necessary. If processing in a subclass of ClientReceiver is required, this method can also be overwritten.

Parameters

[in] pTcpServerMessage The received message.

Returns: A return < 0 indicates an error.

Attention: The passed object must not be removed from memory by the calling instance.

See also: ServerMessage

Implements tcp::DataReceiver.

◆ cancel()

virtual void tcp::ServerReceiver::cancel ( )

overridevirtual

Terminates the thread.

Reimplemented from eut::RepeatingThread.

◆ generateNewTcpMessage() [1/2]

virtual void tcp::ServerReceiver::generateNewTcpMessage	(	AbstractMessage *&	prTcpServerMessage,
		char *	pszRawMsg,
		unsigned int	uiRawMsgSize,
		unsigned int	uiMessageID,
		int	iActionCode,
		const std::string &	rstrInfo ) const

overrideprotectedvirtual

Generates a ServerMessage from transferred parameters.

Parameters

[in,out]	prTcpServerMessage	Pointer to newly generated ServerMessage. This object takes over the removal of the pszRawMsg from the memory.
[in]	pszRawMsg	The message data.
[in]	uiRawMsgSize	The size or length of the message data.
[in]	uiMessageID	A unique ID.
[in]	iActionCode	The ActionCode.
[in]	rstrInfo	An additional text info

Attention: The supplied object must be removed from memory by the calling instance.

Exceptions

eut::ErrorNException If no ServerMessage can be instantiated from the parameters, an exception is thrown.

See also: ServerMessage

Implements tcp::DataReceiver.

◆ generateNewTcpMessage() [2/2]

virtual void tcp::ServerReceiver::generateNewTcpMessage	(	AbstractMessage *&	prTcpServerMessage,
		char *	pszTransmitData,
		unsigned int	uiTransmitDataSize ) const

overrideprotectedvirtual

Generates a ServerMessage from the transferred data buffer and its size.

Parameters

[in,out]	prTcpServerMessage	Pointer to newly generated ServerMessage. This object takes care of removing the pszTransmitData from the memory.
[in]	pszTransmitData	The data buffer including all required information.
[in]	uiTransmitDataSize	The size or length of the data buffer to be sent.

Attention: The supplied object must be removed from memory by the calling instance.

Exceptions

eut::ErrorNException If no ServerMessage can be instantiated from the data (because, for example, the header is incorrect), an exception is thrown.

See also: ServerMessage

Implements tcp::DataReceiver.

◆ operator=()

ServerReceiver & tcp::ServerReceiver::operator= ( const ServerReceiver & )

private

The assignment operator is not available.

◆ setValid()

void tcp::ServerReceiver::setValid ( bool bValid )

Called when socket is no longer ok.

Parameters

[in] bValid If there is a SOCKET error, false is passed here.

◆ work()

virtual void tcp::ServerReceiver::work ( )

overrideprotectedvirtual

Accepts streams from its socket (is blocked until received), turns the data into a ServerMessage which is further processed in ServerReceiver::acceptMessage(AbstractMessage * pTcpMessage).

Implements eut::RepeatingThread.

Member Data Documentation

◆ m_bValid

bool tcp::ServerReceiver::m_bValid

protected

Set to false if socket is no longer ok.

The documentation for this class was generated from the following file:

TcpServerReceiver.h
