tcp::Receiver Class Reference

Superclass for all TcpReceiver that communicate via a SOCKET and deliver their receive result to their parent object. More...

#include <TcpReceiver.h>

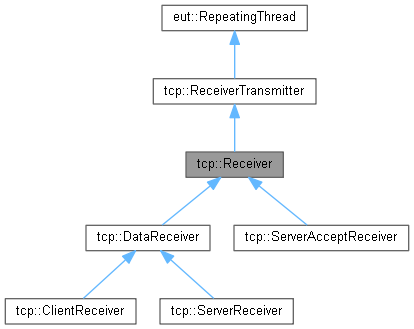

Inheritance diagram for tcp::Receiver:

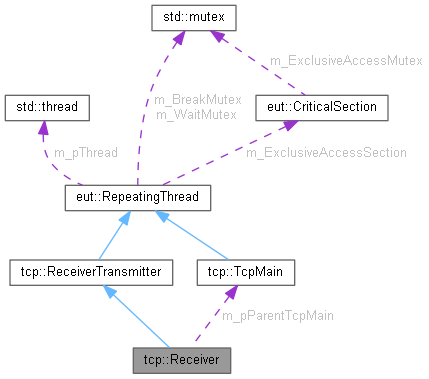

Collaboration diagram for tcp::Receiver:

Public Member Functions
	Receiver (TcpMain *pParent, SOCKET Socket)
virtual	~Receiver ()
Public Member Functions inherited from tcp::ReceiverTransmitter
	ReceiverTransmitter (SOCKET Socket)
virtual	~ReceiverTransmitter ()
virtual void	takeABreak () override
virtual void	finishBreak () override
int	getPeerName (std::string &rstrIPAdress, unsigned int &ruiPort) const
SOCKET	Socket () const
Public Member Functions inherited from eut::RepeatingThread
	RepeatingThread ()
virtual	~RepeatingThread ()
virtual int	start ()
virtual void	cancel ()
bool	testCancel ()
RepeatingThread::STATUS	status () const
bool	isInExclusiveAccess () const
void	setExclusiveAccess ()
void	unsetExclusiveAccess ()
int	getBreakCounter ()
void	waitForInput ()
void	signalInput ()

Protected Member Functions
	Receiver ()
	Receiver (SOCKET Socket)
Protected Member Functions inherited from tcp::ReceiverTransmitter
	ReceiverTransmitter ()
Protected Member Functions inherited from eut::RepeatingThread
void	threadWork ()
void	setStatus (STATUS eStatus)
STATUS	getStatus ()
void	toOrder (ORDER eOrder)
ORDER	getOrder ()
virtual void	work ()=0

Protected Attributes
TcpMain *	m_pParentTcpMain
Protected Attributes inherited from tcp::ReceiverTransmitter
SOCKET	m_Socket

Private Member Functions
	Receiver (const Receiver &)
Receiver &	operator= (const Receiver &)

Additional Inherited Members
Public Types inherited from eut::RepeatingThread
enum	EuTHREADERROR { EuTHREAD_ERR_NO_THREAD = -10301 , EuTHREAD_ERR_THREAD_ALREADY_WORKING = -10302 , EuTHREAD_ERR_THREAD_BREAK_COUNT_LESS_THAN_ZERO = -10303 , EuTHREAD_ERR_UNKNOWN = -10400 }
	Error range = -10301 to -10400 More...
enum	STATUS {   eAT_THE_START , eWORKING , ePAUSING , eENDING ,   eCOMPLETED }
enum	ORDER { eUNDEFINED , eDO_WORK , eEXIT }

Detailed Description

Superclass for all TcpReceiver that communicate via a SOCKET and deliver their receive result to their parent object.

See also

m_pParentTcpMain

Copyright

© 2010 Helmut Jakoby

Author

Helmut Jakoby

Constructor & Destructor Documentation

Receiver() [1/4]

tcp::Receiver::Receiver ( )

protected

This constructor is not available.

Receiver() [2/4]

tcp::Receiver::Receiver ( SOCKET Socket )

protected

This constructor is not available.

Receiver() [3/4]

tcp::Receiver::Receiver	(	TcpMain *	pParent,
		SOCKET	Socket )

Constructor with parameter passing.

Parameters

[in]	pParent	The owning parent object.
[in]	Socket	The socket used for communication.

Exceptions

eut::ErrorNException

An exception is thrown if an error occurs.

~Receiver()

virtual tcp::Receiver::~Receiver ( )

virtual

Destructor.

Receiver() [4/4]

tcp::Receiver::Receiver ( const Receiver & )

private

The copy constructor is not available.

Member Function Documentation

operator=()

Receiver & tcp::Receiver::operator= ( const Receiver & )

private

The assignment operator is not available.

Member Data Documentation

m_pParentTcpMain

TcpMain* tcp::Receiver::m_pParentTcpMain

protected

The parent object (Client or Server)

---

The documentation for this class was generated from the following file:

• TcpReceiver.h
